Week 4

Summary

Written by Trumann (14 Nov 2021)

What was done this week

This week, the team split into two groups: one for research on chitin and chitosan dissolvability and the other to build and design the prototype. This was done in order to have a working prototype as soon as possible and increase team productivity. Due to that there will be 2 different practical sessions running at the same time, one in the workshop and the other in FabLab. To accommodate that, the two groups will each have an Alphabet to represent which group's practical recording is it.

For example: Practical 3A represents the recording done by group that went to the FabLab while Practical 3B represents the recording done by group that went to the workshop.

The progress of the Group A will be gone over first.

Week 4 was an overall productive week for Group A. On 8 Nov 2021, the cardboard prototype was build to look out for any design improvements and plan for the acrylic prototype.

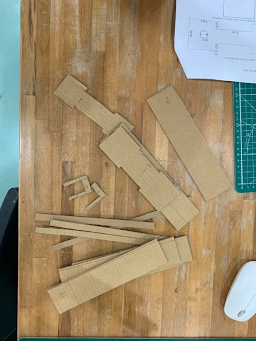

Figure 1: Cardboard parts for prototype

Figure 2: Incomplete Cardboard prototype

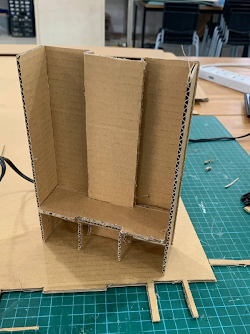

Figure 3: Completed Cardboard Prototype

The cardboard prototype was completed and some measurements were found to be wrong. The group also found that the circled part was not needed and would just add more chance of leakage and errors in the acrylic prototype.

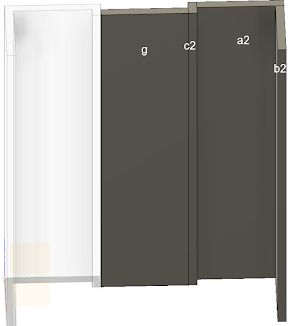

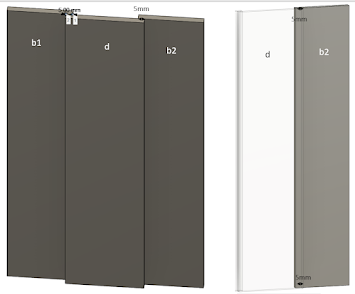

Figure 4: New design (Right) and Old design (Left)

The acrylic prototype was built in 2 separate practical sessions. What was done first was to turn on the laser cutter and use the computer linked to it to set up before cutting. The laser cutter settings and the measurement of parts are checked in the CorelDraw software to be correct.

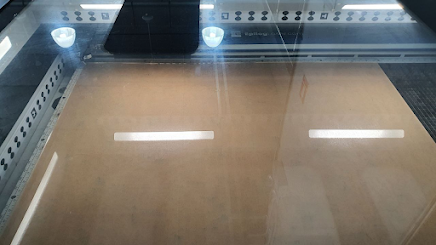

Figure 5: Acrylic board in the laser cutter

After everything was in order, the laser cutting commenced. While waiting, the group of worked on preparing other parts needed for the prototype.

Figure 6: Using handsaw to cut acrylic cylinder

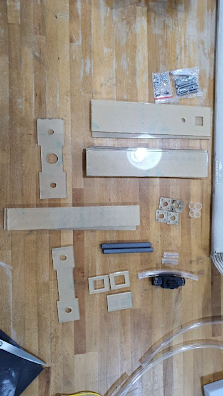

Figure 7: Acrylic parts for prototype

The acrylic parts were then glued together with GOOP marine sealant glue and some acrylic glue.

Figure 8: Completed acrylic prototype with solar panel

The complete product was then showed to the team's supervisor but was unfortunately rejected due to the messy glue stains.

Follow-Up

After further discussion, it was decided that the another prototype was to be made with coloured/ tinted acrylic boards and acrylic glue. The coloured acrylic boards will make the prototype more presentable and hide any potential glue stains. The acrylic glue will be used with a syringe to provide a better watertight seal and make the gluing neater.
